Definitive Guide to Aggregate Trailer Mass (ATM): Understanding Caravan Weight, Why It’s Important, Calculating ATM, and Exploring ATM Upgrades

Introduction

Encountering the term Aggregate Trailer Mass (ATM) for the first time can be overwhelming. With so many caravan and towing terms to juggle, it’s easy to feel confused. At LoadMate, we specialise in simplifying the complex world of towing, caravan weights, and compliance. Our proprietary app provides a precise towing profile that displays your vehicle's and trailer's limits, helping you understand how your setup compares.

This allows you to focus on enjoying your journey rather than worrying about weights, limits, and safe load distribution.

In our high-level guide to Caravan Weights and Terminology, we cover all the terms you need to know when towing. In this article, we’ll dive deeper into Aggregate Trailer Mass (ATM), breaking down its nuances, how to calculate your ATM, and advice if you're considering upgrading your ATM.

What Does Aggregate Trailer Mass (ATM) Mean?

Simply put, the Aggregate Trailer Mass (ATM) is the maximum weight rating of the trailer or caravan as set by the manufacturer. The ATM includes the tow ball mass (or tongue weight) applied to the tow vehicle.

Think of the ATM as your trailer’s maximum weight limit. If your trailer exceeds this weight, it is no longer legally roadworthy.

Actual ATM Weight vs Limit? The ATM Dilemma

The use of the term Aggregate Trailer Mass (ATM) is unique to Australia and New Zealand. Like many of our colloquialisms, the term can have different meanings depending on how it is applied.

To make things even more confusing, we use ATM when referring to both the weight rating of the trailer and the actual weight of the trailer as measured by a scale. This makes it essential to understand the context in which the term is being used.

In Australia, the definition and use of ATM are set by the Vehicle Standards Bulletin 1, a guide for trailer and caravan manufacturers to ensure compliance with the Motor Vehicle Standards Act 1989.

Internationally, different terms are used. In many countries, you will come across Gross Vehicle Weight (GVW) and Gross Vehicle Weight Rating (GVWR) for both vehicles and trailers. These terms help avoid confusion about whether we are discussing the actual weight of the trailer or its weight limit:

• Gross Vehicle Weight Rating (GVWR) – This represents the trailer’s maximum limit. Exceeding this limit renders the trailer unroadworthy.
• Gross Vehicle Weight (GVW) – This is the actual weight of the trailer, as measured by a scale.

So, What Goes Into the Aggregate Trailer Mass?

Now that we know ATM is the uppermost limit for a trailer's total weight before it becomes unroadworthy, let’s look deeper into what contributes to this weight.

First Up Is Gross Trailer Mass (GTM)

The Gross Trailer Mass (GTM) is the maximum weight transmitted to the ground by the tyres when the trailer is coupled to the tow vehicle.

Think of the trailer or caravan as a see-saw. The weight of the trailer and everything in it is distributed between the tyres and the tow hitch connected to the vehicle. The GTM refers to the weight on the tyres alone, assuming an even distribution across the tyres (whether two or four, depending on whether the trailer is single or tandem axled).

Actual GTM vs Limit? Again?

Similar to ATM, Gross Trailer Mass (GTM) refers to both the actual weight of the tyres, as measured by a scale, and the uppermost weight rating they are allowed before the trailer becomes unroadworthy.

While this might not sound much different from ATM, the confusion deepens on the international stage. The United States, for example, doesn’t have an equivalent term for GTM but often uses Gross Trailer Weight (GTW) as an alternative to our Aggregate Trailer Mass (ATM).

So again, it’s crucial to understand that GTM can refer to both the maximum weight rating and the actual weight, depending on the context.

Then We Have the Tow Ball Mass (TBM), Download, or Tongue Weight

Tow Ball Mass (TBM) refers to the weight that is applied to the tow vehicle when the trailer or caravan is hitched up. The Vehicle Standards Bulletin calls this the "Mass on Towing Vehicle," but it's more commonly known as Tow Ball Mass, Download, Tongue Weight, or Nose Weight.

You can measure this weight using a ball scale when the trailer is unhitched, ensuring the trailer is level for an accurate reading.

The Limit for Tow Ball Mass

There are actually three limits to consider when dealing with tow ball mass, which usually refers to the actual weight rather than a limit:

1. The Trailer or Caravan
   The legal maximum tow ball mass in Australia is typically 350 kg, though some light trucks are rated for towing up to 4,500 kg with a 450 kg max permissible tow ball weight. Trailers are often stamped with a maximum permissible ball loading of 350 kg, which is not always the critical limit you need to watch for.
2. The Tow Vehicle
   The tow vehicle often dictates the maximum allowable tongue weight, nose weight, or hitch weight. Be sure to consult your owner’s manual or compliance plaque for accurate ratings, as this limit is commonly the one to be most mindful of.
3. The Hitch
   Hitches themselves are rated, and many economical aftermarket hitches are rated far lower than practical. Ensure that your tow hitch is suitable for the weight and tow ball mass you may encounter. Note that hitch ratings can change if inverted or altered in any way.

Actual TBM + GTM = ATM, your Caravan's Weight

Piecing these together, your actual tow ball mass plus your actual gross trailer mass equals your aggregate trailer mass (ATM).

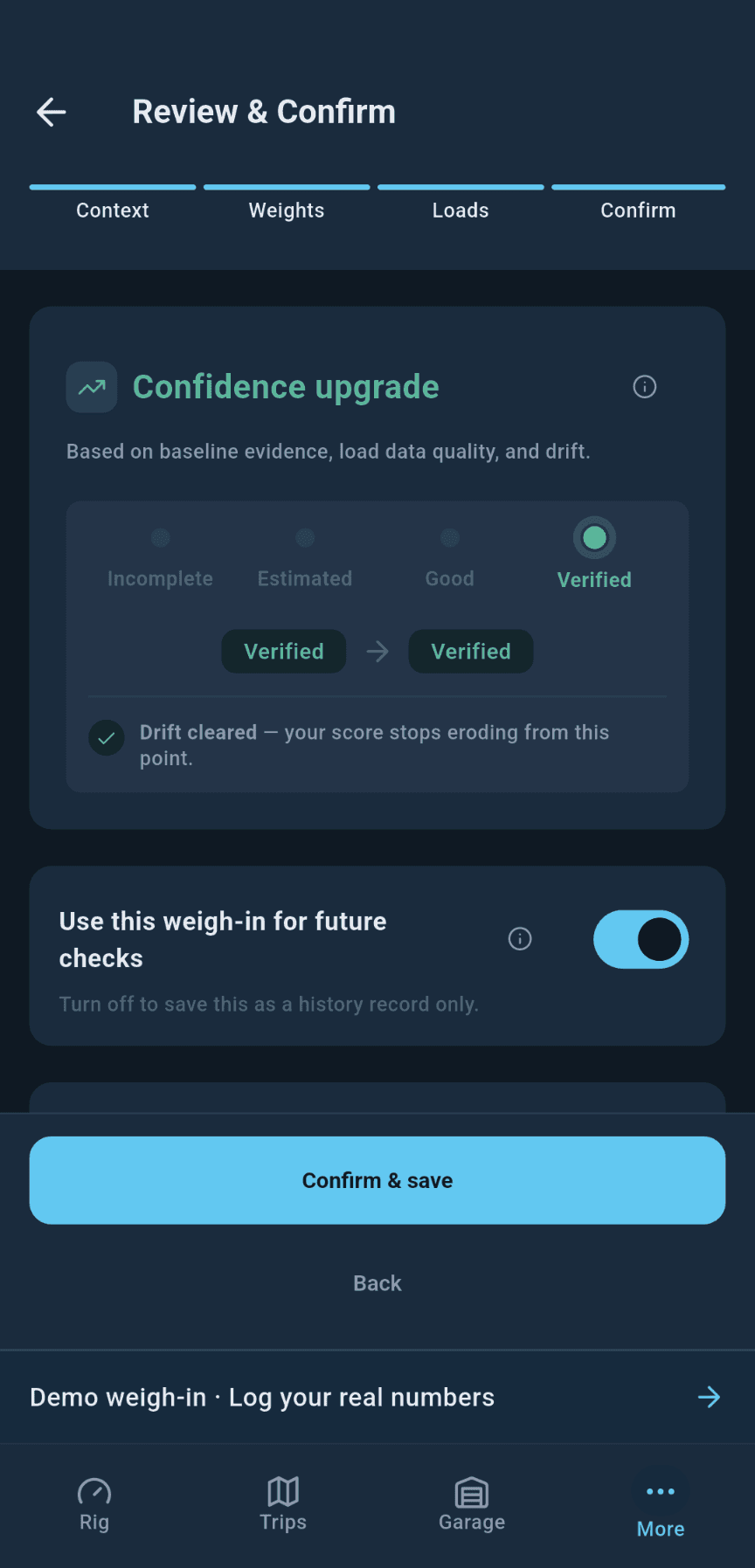

LoadMate: The Easy Way to Track Weight and Ensure Safe Towing

With LoadMate, you can easily track your caravan’s total weight and distribution. Not only does our app calculate your Aggregate Trailer Mass (ATM), but it also provides insights into Gross Trailer Mass (GTM) and Tow Ball Mass (TBM), helping you balance your load for safe towing.

But Why Do We Have to Know the Tow Ball Mass and the Gross Trailer Mass?

Many experienced caravanners are diligent about monitoring the overall weight they’re carrying but may overlook how that weight is distributed. This is where understanding and breaking down the Aggregate Trailer Mass (ATM) into its components – the Gross Trailer Mass (GTM) and Tow Ball Mass (TBM) – becomes critical for safety and stability.

The 10% Tow Ball Mass Rule

A widely accepted recommendation is that the Tow Ball Mass (TBM) should be approximately 9-11% of the total trailer or caravan weight. However, many people misunderstand this rule or fail to apply it correctly, leading to unsafe towing conditions.

The distribution of weight across the trailer and how much of it is transferred to the tow ball significantly affects handling, sway potential, braking efficiency, and overall safety. Here’s why:

• Excessive Tow Ball Mass: If you load too much weight onto the tow ball, it can reduce the steering control of the tow vehicle. This can lead to understeering or difficulty making sharp turns because too much of the vehicle’s weight is concentrated on the rear axle.
• Insufficient Tow Ball Mass: On the other hand, if there isn’t enough weight on the tow ball, the trailer becomes more prone to swaying or fishtailing, especially at high speeds or in crosswinds. This instability can lead to dangerous situations, particularly when towing larger caravans.

The Challenge of Balancing Weight

Getting the balance of weight right can be a complex task. Caravan and trailer designs often have limited storage options, which leads to the temptation to store heavy items such as spare tires, jerry cans, and toolboxes on the front or rear bars.

However, this practice can be detrimental to the caravan’s stability. Loading items at the extremes (either front or back) can negatively impact weight distribution, especially for caravans longer than 7 meters. Larger caravans are more sensitive to yawing (side-to-side movement), making the 10% tow ball mass rule not just a recommendation but a crucial safety measure.

Why Caravan Length and Weight Matter

One important aspect many people overlook is how the length and weight of the caravan affect the need for precise weight distribution. Smaller camper trailers, on-road caravans, or European models, which are generally shorter and lighter, aren’t as sensitive to a perfectly balanced 10% tow ball mass. However, for caravans that exceed 6-7 meters in length, following this rule becomes essential.

Larger and heavier caravans are more prone to swaying and require greater attention to weight distribution. Their longer lengths make them more susceptible to instability, turning the 10% tow ball mass rule into an essential safety guideline rather than just a suggestion.

With LoadMate, you can track the specific requirements for your caravan length, ensuring everything stays within limits for safe travel.

The Catch: When the 10% Tow Ball Mass Pushes Other Limits

For those towing larger caravans, hitting that ideal 10% tow ball mass can present a challenge. Achieving the correct TBM may push the Gross Vehicle Mass (GVM) and rear axle loads of your tow vehicle beyond their specified limits, particularly when the van is fully loaded.

Additionally, some caravan manufacturers have started advertising tow ball weights at tare (unladen weight) that are well below the recommended range. This creates a situation where caravanners must carefully and strategically load their caravans to hit the target tow ball mass — but that doesn’t mean piling weights onto the A-frame! Proper load distribution is the key to safe towing.

Equal Weight Doesn’t Mean Equal Distribution

It’s important to recognise that achieving the correct overall weight for your caravan doesn’t automatically mean that weight is distributed safely. To maintain stability, weight must be balanced in three dimensions:

1. Lateral Balance (Side to Side): The weight should be distributed evenly across the width of the caravan. Ideally, the weight on each side should not differ by more than 3%. This aspect is often neglected, but it’s critical to preventing the caravan from becoming unbalanced and pulling unevenly.
2. Longitudinal Balance (Front to Back): Weight should be distributed along the length of the caravan in a way that avoids excessive load on either the front or rear. Heavy items stored at the front or back can create a "see-saw" effect, destabilising the tow.
3. Vertical Balance (Low Centre of Gravity): The lower the centre of gravity, the more stable the caravan. Aim to store heavier items as close to the floor as possible to minimise the risk of toppling or swaying.

Balancing weight isn't just about total weight – it's about distributing that weight correctly. With LoadMate, you can accurately track not just total weight but ensure proper distribution across axles, sides, and height, giving you full confidence in your caravan's stability.

Lateral Weight Distribution: An Overlooked Factor

Surprisingly, not all professional weigh-ins highlight lateral load distribution (side-to-side balance), and standard weighbridges certainly won’t measure this. Many caravanners load up their vans without considering whether one side is significantly heavier than the other. This imbalance can lead to uneven tyre wear, reduced braking efficiency, and even swaying.

To ensure lateral balance, the weight on each side of your caravan should be roughly equal. For caravans with tandem axles, this means making sure the front-left and front-right wheels are evenly loaded, as well as the rear-left and rear-right wheels.

Why Manufacturers Should Ensure Proper Weight Distribution

Ideally, manufacturers should take responsibility for ensuring their caravans leave the factory with evenly distributed weight and within the ideal ratios for Pig Trailers. However, due to high demand and a lack of stringent oversight, this isn’t always the case.

As a buyer, it’s essential to be vigilant and perform your own checks to ensure the caravan is safe to tow. Don’t assume that a caravan straight off the lot is perfectly balanced. Taking the time to ensure proper distribution can save you from potentially dangerous towing situations down the road.

The Vehicle’s Gross Vehicle Mass (GVM) and Rear Axle Weight Rating

Now that you understand your caravan’s weight limits, it’s crucial to consider the Tow Ball Mass (TBM) applied to your vehicle’s tow hitch. This weight is more than just a number — it’s a key contributor to your vehicle’s Gross Vehicle Mass (GVM) and must be factored into your overall towing calculations.

The tow ball mass directly affects your vehicle’s rear axle load. Many caravanners unintentionally exceed their rear axle weight limit long before they reach their vehicle’s total GVM or other compliance limits. This often happens because calculating the distribution of weight between the caravan and the vehicle can be complex, leading to misunderstandings about how much stress the rear axle is actually under.

For a more in-depth explanation of GVM and how to stay compliant with vehicle weight limits, check out our Definitive Guide to Gross Vehicle Mass. It covers everything you need to know about managing your vehicle’s weight capacities while towing, ensuring safe and compliant travel.

Things to Watch: The Truth About Caravan Tare Weights

One of the most misunderstood aspects of caravan weight is the tare weight. While it might seem straightforward, many caravanners fall into the trap of relying on inaccurate tare weights, especially when factoring in post-purchase add-ons.

Caravan tare weights are often provided as model averages, meaning the figure you receive isn’t unique to your specific build. This approach gives you a rough estimate but can be off by a significant margin. In fact, several prominent brands have been known to have discrepancies of up to 100 kg between the listed tare weight and the actual weight of the caravan.

To complicate matters further, some manufacturers conveniently exclude optional add-ons from the compliance plate tare weight. This means that while your compliance plate may suggest a certain tare weight, it might not account for items like air conditioners, extra batteries, or larger water tanks that were added during production.

The Result?

The weight you assume your caravan to be, based on the compliance plate, could be much heavier than anticipated. This difference can leave you with far less available payload than you thought, which can lead to overloading and potential compliance issues.

To avoid unpleasant surprises, it’s highly recommended to arrange for a professional weight check before taking delivery of your caravan. This proactive step ensures you’re fully aware of the actual weight and any discrepancies while you still have the chance to negotiate adjustments with the dealer.

Buying a Pre-Loved Caravan?

For those purchasing a used caravan, there’s an added layer of complexity. Previous owners may have installed additional components such as bike racks, awnings, solar panels, or other accessories after their initial purchase. While these modifications can enhance convenience, they also significantly impact the caravan’s weight and balance, reducing the available payload.

In a competitive seller’s market, where buyers often face rushed decisions or limited inspection opportunities, these hidden weight additions can easily catch you off guard. Always prioritise a thorough weight check to ensure you're not left with an overloaded caravan and insufficient payload for your travels.

ATM Upgrades: What Are Your Options and How Does It Work?

If you’ve found that your caravan is regularly overloaded, or if you want more flexibility in your payload capacity, an ATM (Aggregate Trailer Mass) upgrade could be a viable solution. Here’s a breakdown of what’s involved, the available options, and tips to help you get the most out of your upgrade.

Why Consider an ATM Upgrade?

An ATM upgrade can be particularly beneficial if:

• Your caravan is overloaded after adding accessories like additional batteries, solar panels, water tanks, or extra storage. This is common in caravans with low initial payloads.
• You’ve upgraded your tow vehicle and want to increase your caravan's payload.
• You want peace of mind knowing your caravan is legally compliant, preventing insurance issues in the event of an accident.

What’s Involved in the ATM Upgrade Process?

The process for upgrading your caravan’s ATM is comprehensive and involves both technical inspections and official certifications. Here are the typical steps involved:

1. Initial Assessment: A licenced engineer will inspect your caravan to assess whether the upgrade is possible without structural modifications. This involves checking components such as the chassis, axles, suspension, and tyres. The engineer will verify whether these parts can handle the increased load that comes with a higher ATM.
2. Component Inspection: The upgrade process includes evaluating the strength and rating of crucial components like:
   • Tyres and rims (load rating, size, and condition)
   • Suspension (type, load capacity)
   • Axles and brakes (load ratings and design)
   • Safety chains and couplings
3. If any of these components don't meet the required load ratings, they will need to be upgraded or replaced before the ATM upgrade can proceed.
4. Modifications (if necessary): If the chassis or other components require reinforcement, these upgrades will be performed before proceeding with the upgrade. This can involve strengthening the drawbar, upgrading the suspension, or installing higher-rated axles and brakes.
5. Certification and Re-Plating: Once the necessary modifications are complete, the engineer will certify the upgrade. A new modification plate is affixed to the caravan, displaying the revised ATM. The new rating is also submitted to the relevant state transport authority to update your caravan's registration details.
6. Final Weight Check: After the upgrade, a professional weight check is recommended to ensure that all components are operating within their new limits and that the ATM upgrade is accurate.

Key Considerations and Tips

• Check the Chassis Strength: Don’t push your components to their absolute limits. To ensure longevity and safety, aim to use only 80% of the component's load capacity, especially for critical parts like brakes and suspension.
• Understand the Limits of Your Components: Even if your caravan can handle an ATM upgrade, your vehicle's Towing Capacity, Gross Vehicle Mass (GVM) and Rear Axle load limits also need to be considered. The tow vehicle’s capacity to handle the increased weight is crucial for safe towing.
• Beware of Overloading: Even after an ATM upgrade, carefully manage your caravan's weight distribution to avoid overloading, which can cause dangerous instability during towing.
• Consult Your Manufacturer: Some manufacturers may void warranties if an ATM upgrade is performed without their approval. Always seek written confirmation from the manufacturer before proceeding with significant modifications.

By following these steps and working with a qualified engineer, an ATM upgrade can provide the additional payload capacity you need without compromising safety or legality. Always weigh the costs and potential modifications involved to ensure the upgrade is both practical and beneficial for your needs.

Conclusion: Simplifying ATM and Towing Limits with LoadMate

Managing your caravan’s weight limits, whether it's understanding the Aggregate Trailer Mass (ATM), balancing the Tow Ball Mass (TBM), or considering an ATM upgrade, can be a daunting process. The technical aspects involved—ranging from component checks to weight distribution—are complex and often confusing for even seasoned caravanners.

This is where LoadMate can make all the difference.

LoadMate offers a comprehensive solution to ensure you stay within all the relevant weight limits, simplifying everything from understanding the correct terms to calculating your caravan’s ATM. Our software allows you to:

• Easily track your caravan's weights: Input your caravan’s specific data to get an accurate read on your current ATM, GTM, and TBM.
• Ensure compliance: Avoid overloading, reduce the risk of costly mistakes, and ensure that you remain compliant with road safety laws and vehicle manufacturer specifications.

With LoadMate, you can go into every trip confident that you’re towing safely, legally, and without the stress of juggling multiple calculations or complex weight limits. Our easy-to-use app streamlines the entire process, providing you with real-time insights into your towing capacity and helping you make the right decisions—whether you're preparing for a big trip or considering an ATM upgrade.

Explore the power of LoadMate today at Loadmate and take control of your caravan's weight and towing capacity. Simplify the complexity, and focus on enjoying your journey with peace of mind.
